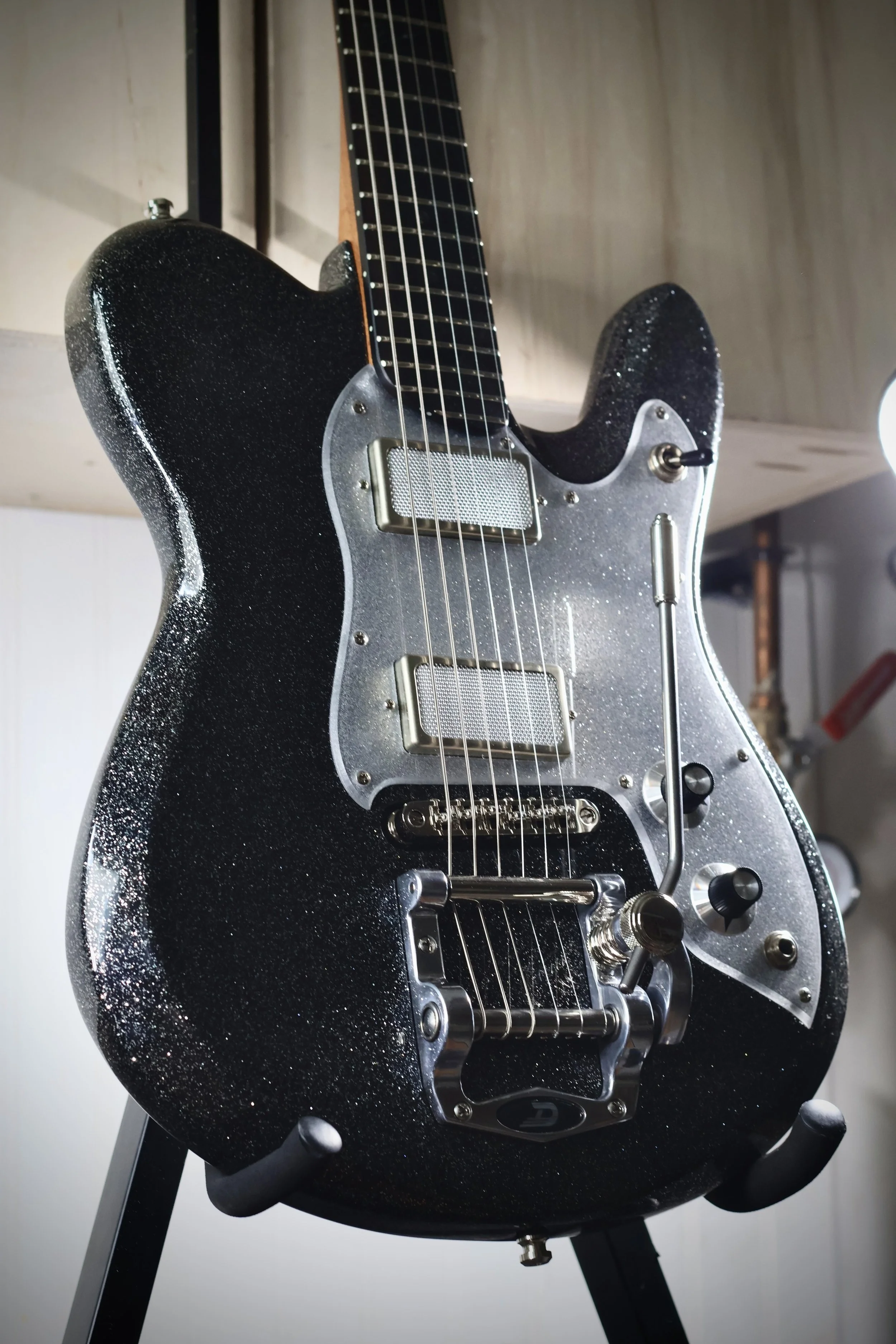

STAGELINE-CRS01
Serial Number: VG-PRO-CRS01
Model: Dunham StageLine
Series: 01
Completion Date: June 27th
Built In: Airdrie, Alberta, Canada
Verified Vokey Instrument
Original Build Specification:
Body Wood: Roasted Alder
Neck Wood: African Mahogany
Fretboard: Gaboon Ebony
Scale Length: 25.5”
Radius: 12”
Frets: 24, Nickel Silver Medium/Medium
Nut: Tusq
Finish: Custom Sparkle Black
Neck Finish: Tung Oil
Pickup Configuration: Humbucker + P90
Pickup Set: Cain & Abel Signature Set
Controls: Master Volume, Master Tone, 3 Way tgoggle, Push-Pull bridge split
Bridge/Tremolo: TonePros Roller + Duesenberg Diamond Trem
Tuners: Gotoh Vintage Locking
Strap Hardware: Button/Strap locks
Strings: NYXL 10-52
Case: Quantum Industries Hachiman
Factory Setup Reference
Factory Tuning: E - Standard 440hz
Factory String Gauge: 10-52
Neck Relief: .008”
Action, Treble Side: .060
Action, Bass Side: .065
Pickup Height: 1.5mm Bridge, 2mm Neck
Intonation: Set at final inspection for 10-52, E standard
Controls and Electronics
This instrument uses an HH pickup configuration with master volume, master tone, and a 3-way pickup selector.
Selector positions:
1. Bridge pickup
2. Bridge and neck pickups
3. Neck pickup
Bridge Pickup: PegCityPickups Cain (Signature set)
Neck Pickup: Abel (Signature set)
Volume Pot: CTS A500K
Tone Pot: CTS Push-Pull B500K
Treble Resistor: Ceramic .022uF
Output Jack: Switchcraft 1/4” Output Jack
Toggle Switch: NexGen 3way Toggle
Care and Maintenance
This instrument is finished in nitrocellulose lacquer. Nitro is thinner and more reactive than many modern catalyzed finishes, and it should be treated with care.
Avoid prolonged contact with rubber, vinyl, foam, synthetic straps, guitar stands with unknown padding, and strong solvents. Use a clean microfiber cloth for routine cleaning.
Do not leave the instrument in a hot vehicle, direct sun, or extreme cold. Allow the guitar to acclimate in its case before opening after major temperature changes.
Seasonal movement is normal. Small adjustments to relief, action, or intonation may be required as humidity changes.
Mono-Chassis Pickguard System
This instrument uses the Vokey/Stageline mono-chassis pickguard system. The electronics are mounted to the guard as a serviceable assembly.
If removing the guard, work slowly and avoid pulling against the bridge ground or output wiring. If the instrument includes quick-disconnect bridge ground wiring, confirm the connectors are fully seated before reinstalling the guard.
If you are unsure, contact Vokey Guitars before removing the assembly.
Warranty and Support
For setup questions, service, replacement parts, or support, contact Vokey Guitars with your serial number.
Please include:
- Serial number
- Current tuning and string gauge
- Photos or video of the issue
- Any recent changes to setup, wiring, hardware, or environment
